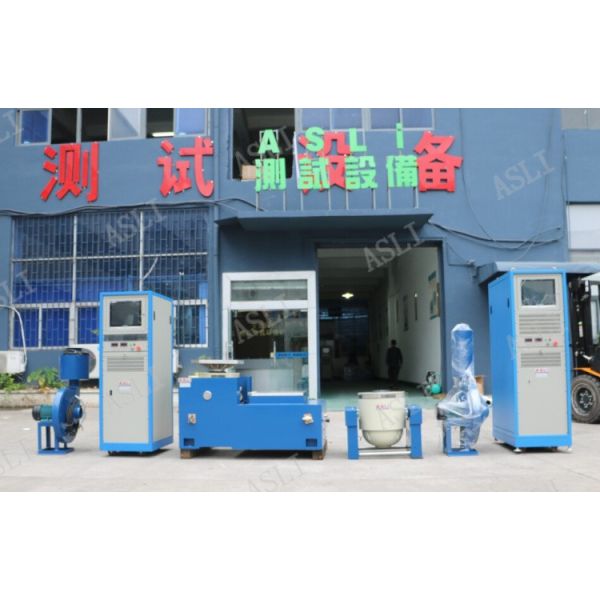

Transportation Shaker Vibration Tester
Technical Specifications
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s²) |
Rated Speed (m/s) |
Rated Displacement (p-p) mm |
Max. Loading (Kg) |
Moving Coil (Kg) |
Dimension of Moving Coil (mm) |
| ES-3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
| ES-3a |
3000 |
3000 |
3-3500 |
400 |
1.6 |
40 |
120 |
9 |
Φ230 |
| ES-6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ230 |
| ES-6a |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
51 |
250 |
12 |
Φ230 |
| ES-10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
| ES-20 |
20000 |
20000 |
3-3000 |
1000 |
1.8 |
51 |
300 |
30 |
Φ320 |
| ES-30 |
30000 |
30000 |
3-2800 |
1000 |
1.8 |
51 |
450 |
40 |
Φ450 |
| ES-40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
| ES-50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
Technical Parameters of Vertical Expander
Technical Parameters of Horizontal Expander
High Frequency Vibration Test Machine Specifications
- Well-designed dynamic circle skeleton with higher stage axial resonance frequency
- Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for eccentric load capacity
- Trunnion isolation foundation dedicated to hormone use for convenient mobile installation
- Advanced technology move-around system ensuring high reliability of dynamic circle
- New duct design enhancing cooling effect
- High static stiffness and small dynamic stiffness balloon for improved bearing capacity and low-frequency performance
Product Images
Company Information
ASLI main products include: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber, etc.
Packing & Delivery
Our Service
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our Transportation Shaker Vibration Tester, please don't hesitate to send your inquiry.
